CAN MAKING EQUIPMENT

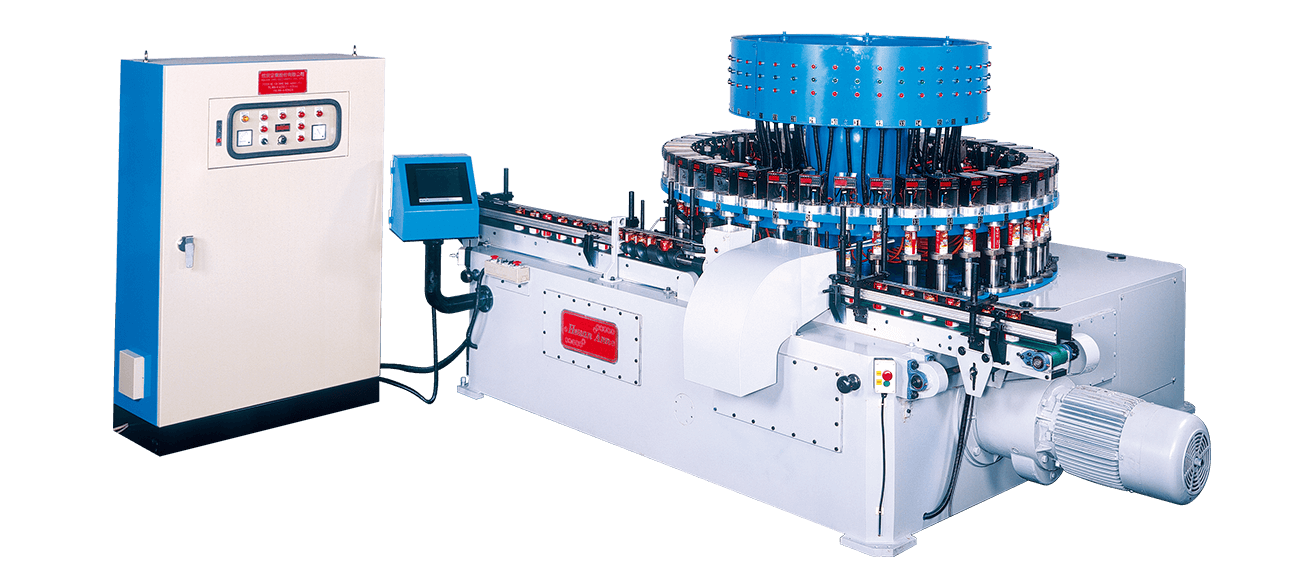

SJA-440 Automatic Vertical Type Can Tester

Automatic Vertical Type Can Tester
Automatic Vertical Type Can Tester
  • Features
    1. 1.The machine tests cans for leaks by filling them with air. Leaking cans are ejected from the machine automatically. The machine is suited for testing tin cans.

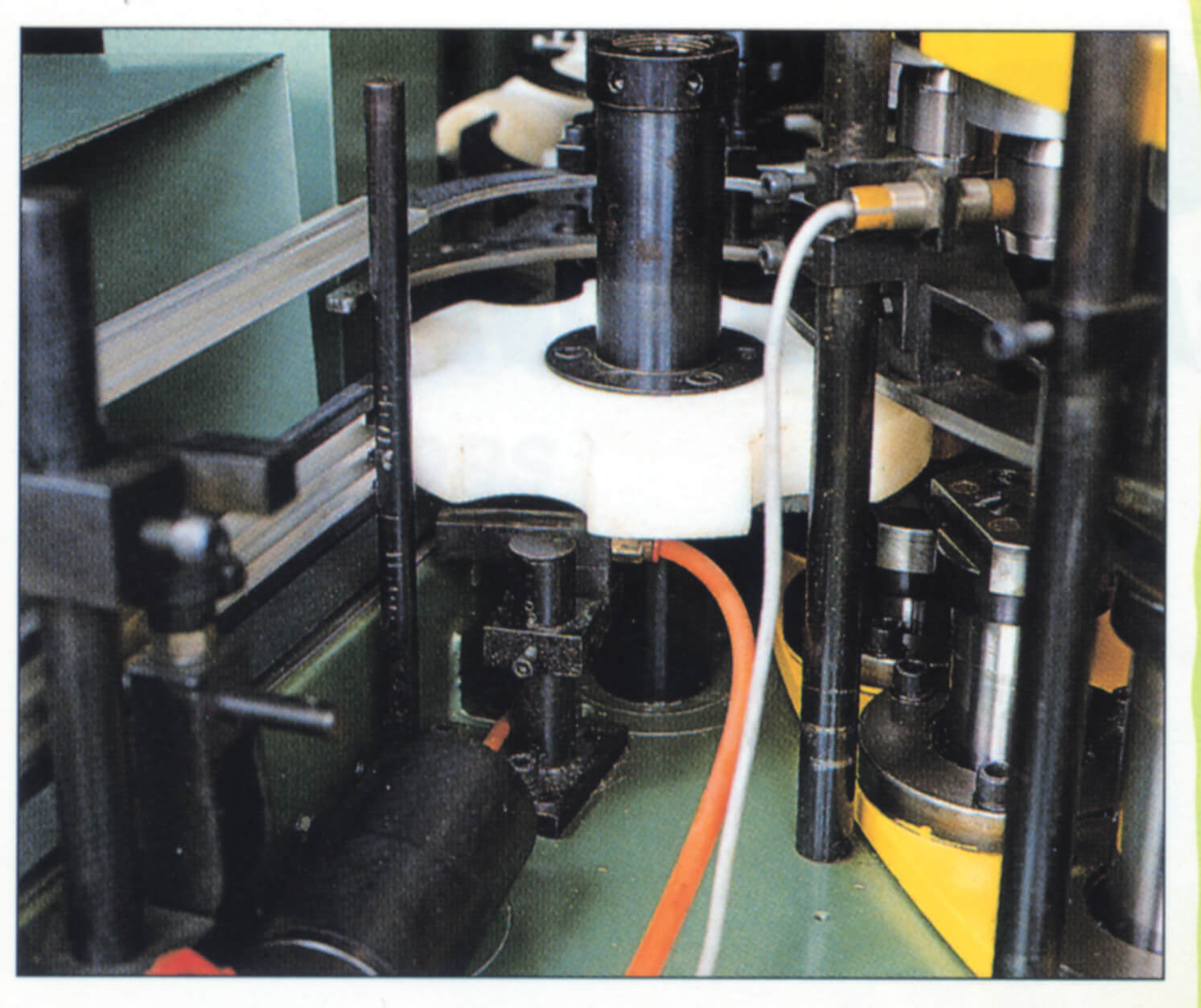

    CAN EXHAUST HOOD

    The leaking cans are fed to this section to be ejected from the machine. An air storage drum provides positive ejecting performance for consecutive leaking cans.
    Automatic Vertical Type Can Tester

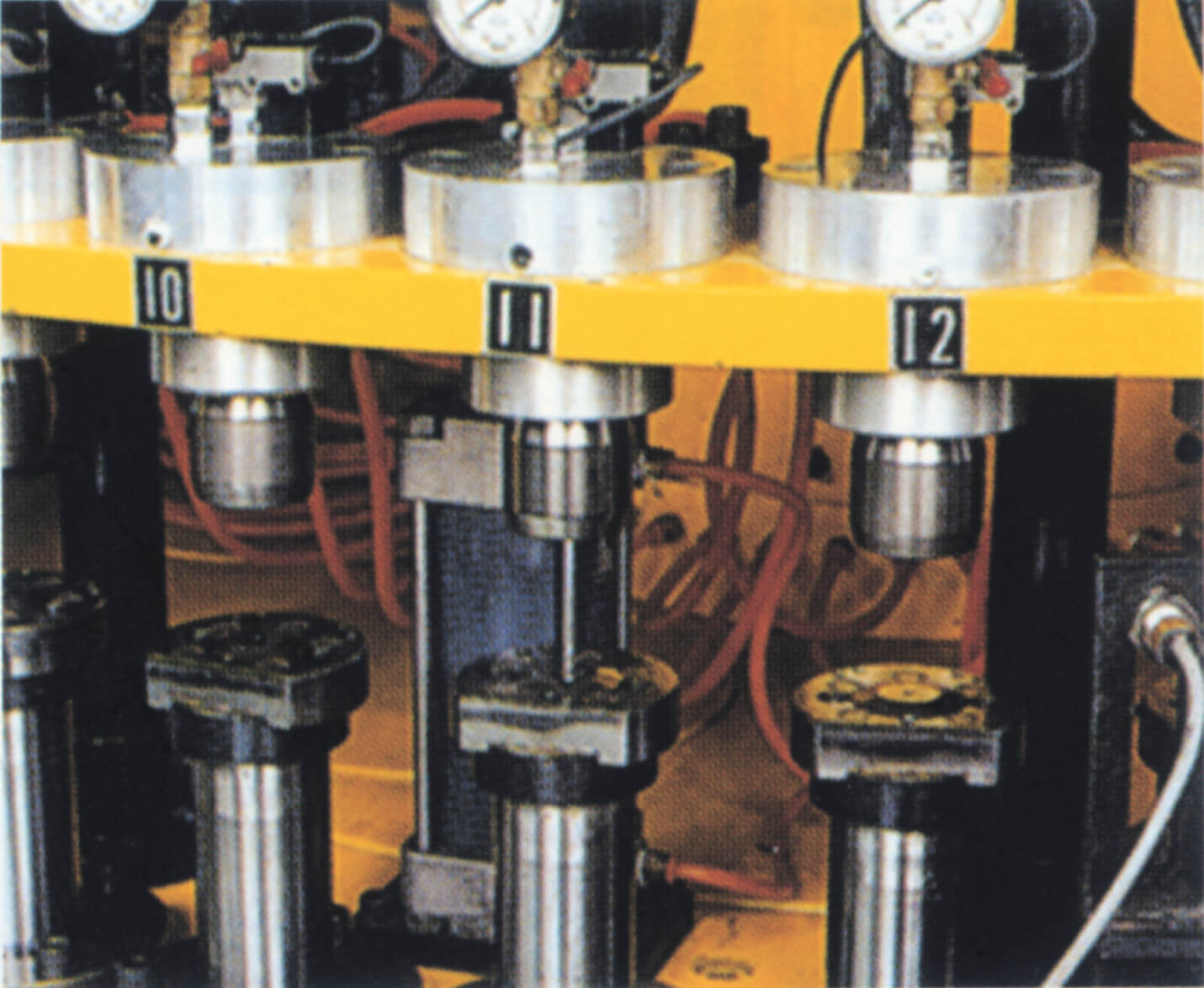

    ACCURATE TESTING MECHANISM

    Can integrity is tested with air pressure. Leaking cans are indicated by a signal lamp, and are ejected from the machine automatically. The air pressure used to test the cans can be adjusted through an air source switch.
    Automatic Vertical Type Can Tester
  • Specifications
    Model Unit SJA-440 SJA-440A SJA-440S
    Head 40H 40H 25H
    Range of can diameter 202-307D 202-307D 202-307D
    Range of can height mm 78-180 78-180 78-180
    Capacity per min cpm 650 650 400
    Horsepower required HP 15 15 ½
    Floor space(LxWxH) mm 3610x2500x1850 3610x2500x1850 3000x1820x1850
    Feed height mm 800 800 800
    Discharge height mm 800 800 800
    Net weight(approx.) kgs 7200 7600 4500
    All specification, design and characteristics shown on this catalogue are subject to change without prior notice.
