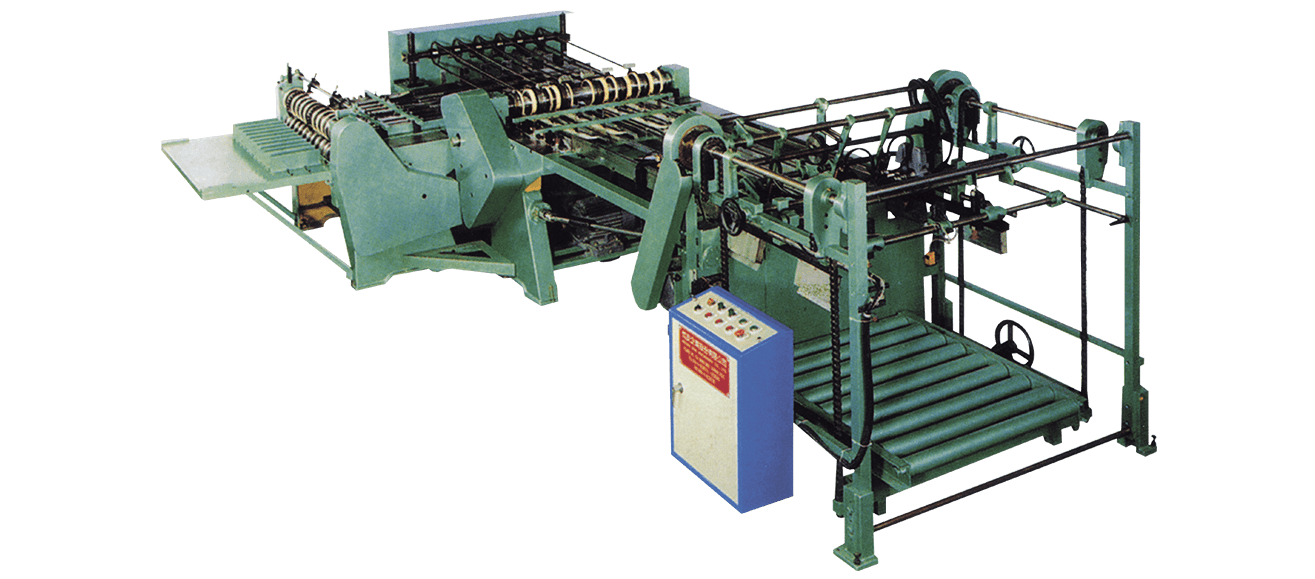

SJA-202 Automatic Feeding Machine / SJA302 Automatic Gang Slitter
-
Features
The system consists of an automatic feeding machine and can slitter. It employs circular knives for cutting steel sheet. The unit offers simplified construction and ease of operation. It accepts maximum sheet dimensions of 1040x1040mm.

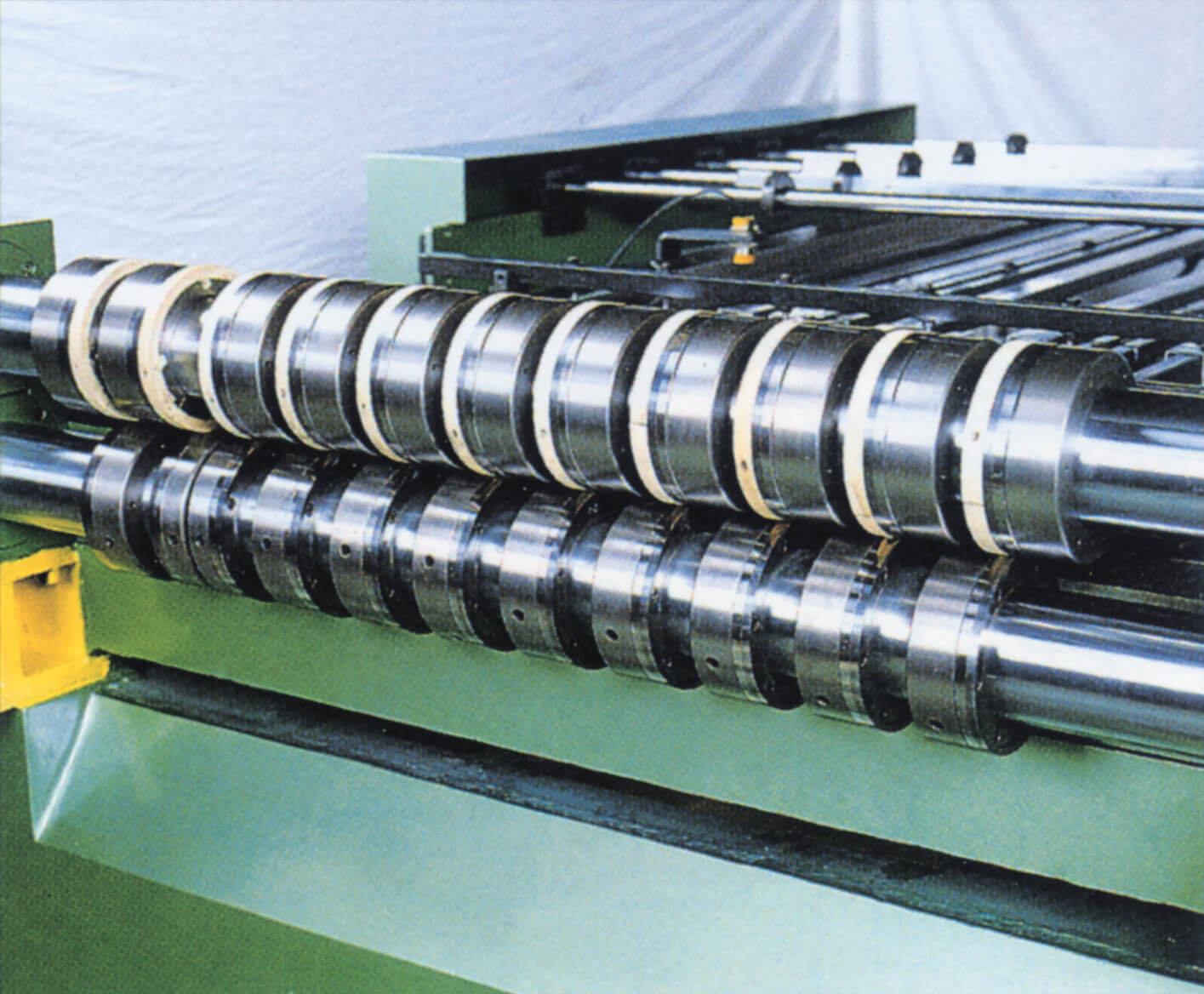

First Slitting Mechanism
This slitting mechanism cuts the steel sheets to the desired size for can bodies. Numbers of knives are available to meet variations in can type. Automatic positioning of steel sheets ensures high accuracy of cut.

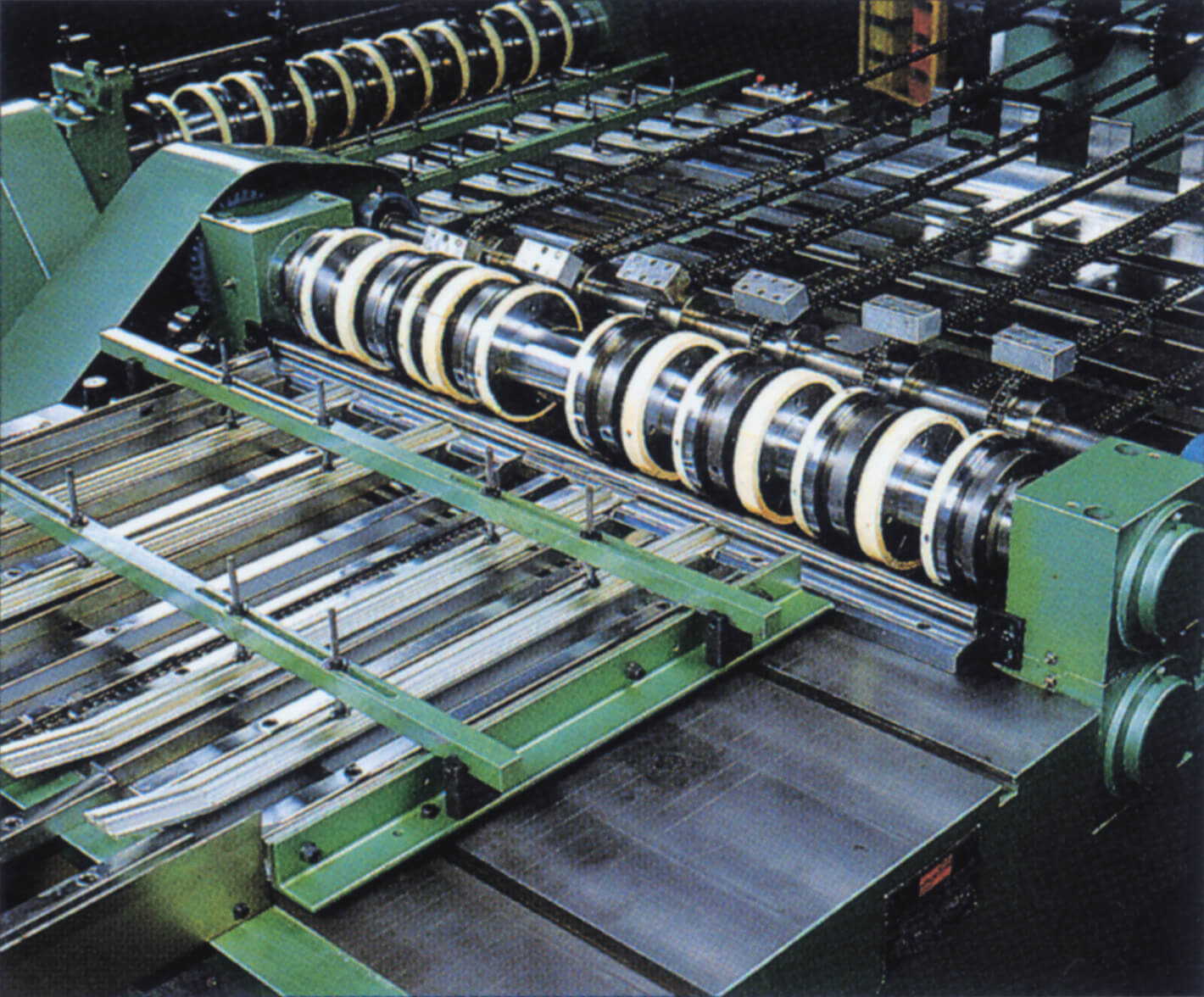

Second Cross Cutting Mechanism
This cutting mechanism cuts the steel sheets to the desired size of can height. The knife arbor is fitted with T.C.T. circular knives. The spring loaded pressure device is fitted with bearings for the positioning of steel sheets, ensuring high accuracy of cuts.
-
Specifications
Model Unit SJA-202 SJA-301 SJA-302 Max sheet dimension mm 1168x1168 1040x1040 1040x1040 Mix sheet dimension mm 450x450 650x650 650x650 Max sheet thickness mm ---------- 0.4 0.4 Capacity per min. sheets/min 15-30 15-28 15-28 Horsepower required HP 3HP 1HP 3HP Floor space (LxWxH) mm 1520x1275x1420 2400x1700x1200 3440x2730x1260 Net weight (approx.) kgs 1200 1000 2100 All specification, design and characteristics shown on this catalogue are subject to change without prior notice.
